• Product Description
    Company Info.
    Processing customization:
    Yes
    Rated current:
    100 A
    Short circuit turn-off current:
    10 KA
    Shell protection class:
    IP54IP65
    Overall dimension:
    600*700*300 mm
    Shell material:
    Cast aluminum alloy, cast steel, stainless steel
    Model:
    BXMD-T

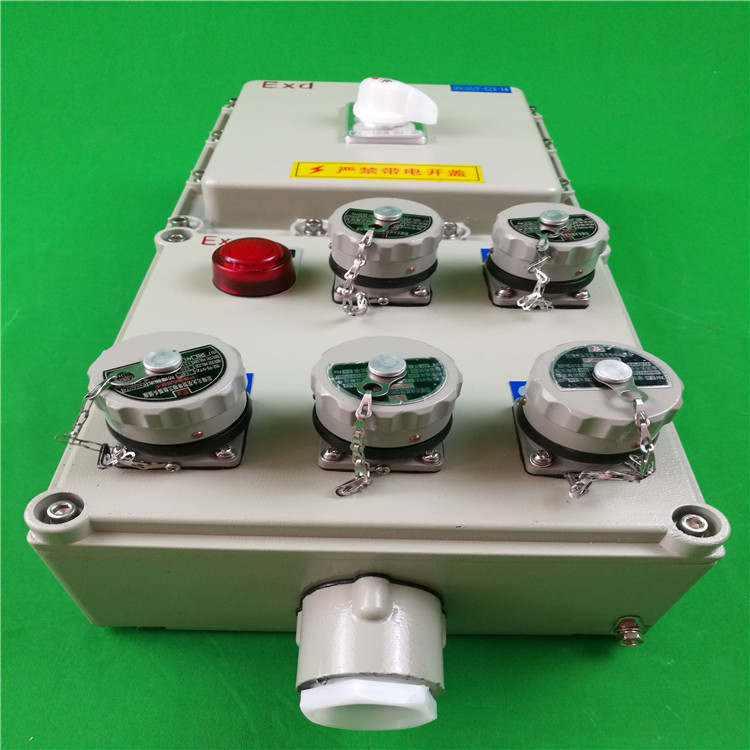

    Product picture+product brochure+product description

    technical feature
    1 . Aluminum alloy shell die-casting molding, surface spray plastic, beautiful appearance;

    2. Built-inC65N,NC100HandS25□Shigh-breaking small circuit breaker,M611orGV2motor protector,3VE1air switch,CM1 moldedcase circuit breaker and signal lamp and other components;

    3. The product is compound type, switch box adopts explosion-proof structure, bus box and outlet box adopt safety enhancement structure, cavity is equipped with sealing ring, with good waterproof and dustproof function;

    4. Products with overload, short-circuit protection function, according to requirements to increase leakage protection and other functions;

    5. Modular structure, various circuits can be assembled freely according to needs;

    6. Can be customized according to requirements, such as installation of surge protectors, ammeters, voltmeters, etc.;

    7. Steel pipe or cable wiring;

    8. Wall mount and floor mount options available


    technical parameters
    1. Standard:GB3836.1,GB3836.2,GB3836.3,GB12476.1,IEC60079

    2. Explosion-proof signs:Exde II BT6,Exde II CT6

    3. Rated voltage:AC220/380V

    4. Rated current of main circuit:1A,3A,5A,10A,15A,20A,25A,32A,40A,50A,60A

    5. Protection class:IP54(IIB),IP55 (IIC),IP65(DIP)

    6. Anti-corrosion grade:WF1

    7. Inlet thread:G2~G3

    8. Outlet thread:G1 1/2




    Technical Features 1. The aluminum alloy shell is formed by die casting, with a plastic spray surface, offering an attractive appearance2. Equipped with C65N, NC100H, and S25□S high-breaking capacity miniature circuit breakers, M61 or GV2 motor protectors, 3VE1 air switches, CM1 plastic case circuit breakers, and signal lights; 3. The product is of type, with the switch box adopting an explosion-proof structure, and the bus box and outlet box adopting an enhanced safety structure. All chambers are equipped with sealing rings providing excellent waterproof and dustproof functions; 4. The product has overload and short circuit protection functions, and additional functions such as leakage protection can be added as; 5. Modular structure, various circuits can be freely assembled as needed; 6. Customizable options include the addition of surge protectors, ammeters,tmeters, etc.; 7. Steel pipe or cable wiring; 8. Available in wall-mounted and floor-standing types. Technical Parameters 1. Execution standards:3836.1, GB3836.2, GB3836.3, GB12476.1,EC60079 2. Explosion-proof mark: Exde II BT6, Exde II CT6 3. Rated voltage: AC20/380V 4. Main circuit rated current: 1A, 3A, 5A, 10A, 1A, 20A, 25A, 32A, 40A, 50A, 60A . Protection level: IP54 (IIB), IP55 (IIC), IP65 (DIP) 6. Corrosion resistance level:1 7. Inlet port threads: G2~G3 8. Outlet port threads: G1 1/4
