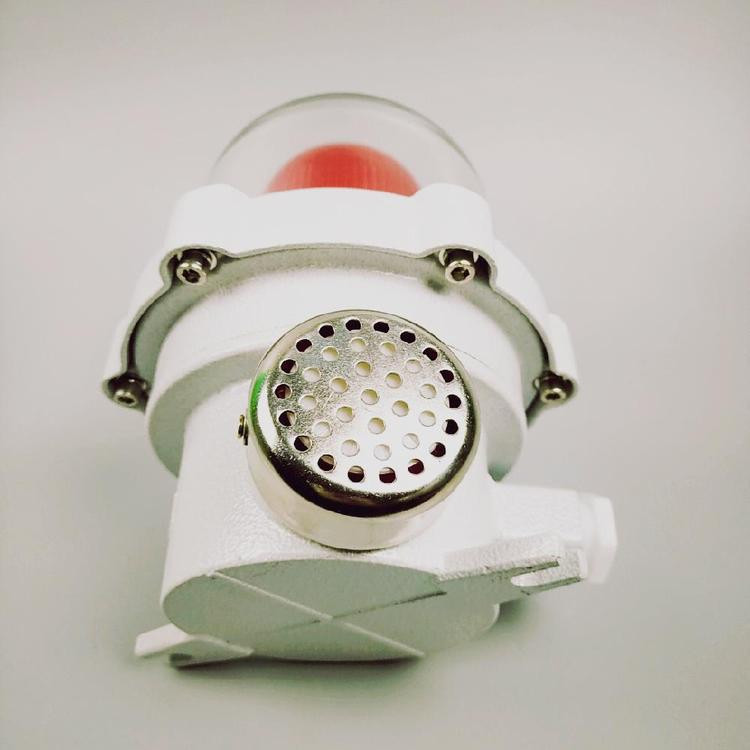

Product DescriptionCompany Info.<>
- Types:
- Explosion-proof indicator
- Processing customization:
- Yes
- Lighting Typ:
- LED
- Light source power:
- 5 W
- Voltage:
- 220 V
- Protection grade:
- IP66
- Main scope of application:
- Widely used in oil extraction and refining
- Model:
- BJD
range of application
1. Explosive gas mixtures Hazardous locations: Divisions 1and2
2. Explosive gas mixtures: ClassIIA,IIB,IIC3. Temperature group:T1-T6
technical parameters
1, temperature range:-20℃~+50℃
2, relative humidity:≤95%no condensation
Atmosphericpressure:80~110KPa
4, power supply voltage:DC24V;AC 220V;AC127V.
5, alarm working current:≤600mA(DC24V)
Soundintensity:100~115dB
7. Protection grade:IP65
8. Weight:1.4kg
product feature
1. The shell adoptsZL102aluminum alloy die-casting molding, and the surface is high-voltage electrostatic spraying;
2. Toughened glass cover, stainless steel exposed fasteners, protective mesh cover after galvanized surface spray, double corrosion;
3. Tempered glass cover has strong impact resistance, and red, yellow, blue and other colors to choose from;
matters need attention
1, it is strictly prohibited in flammable and explosive places charged disassembly.
2, installation do not damage the flameproof surface,and keep it clean. Fastening screws on flameproof surface shall be tightened evenly, and foreign matters shall not be mixed on flameproof surface.
3, long-term use to regularly check whether the performance of the alarm is in good condition, such as failure or damage to be repaired by personnel.
Scope of Application** 1. Explosive gas mixture hazardous locations: Zone 1, Zone 2 2. Explosive mixtures: II A, II B, II C 3. Temperature groups: T1-T6 **Technical Parameters** 1. Temperature range: -0°C to 50°C 2. Relative humidity: ≤95% (non-condensing) 3. Atmospheric pressure: 80~10 KPa 4. Power supply voltage: DC24V; AC220V; AC127V 5. Operating current during alarm ≤600mA (DC24V) 6. Sound intensity: 100~115 dB 7. Protection rating: IP5 8. Weight: 1.4 kg **Product Features** 1. The housing is made of ZL102 aluminum alloy, formed pressure casting, with high-pressure electrostatic spraying on the surface; 2. Tempered glass cover, stainless steel exposed fasteners, and a protective grille that isvanized and then sprayed, providing double corrosion resistance; 3. The tempered glass cover has strong impact resistance and is available in various colors such as red, yellow, blue; **Precautions** 1. Do not disassemble or install in flammable or explosive environments while powered. 2. Do not damage the explosion-proof during installation and keep it clean. Tighten the explosion-proof surface screws evenly, ensuring no foreign objects are trapped. 3. Regularly inspect the alarm's performance long-term use. If it fails or is damaged, have it repaired by a professional.
