Brief Introduction of Explosion-proof Electrostatic Discharge Instrument


I. Product definition and function
Explosion-proof electrostatic discharge instrument is specially designed for flammable, explosive and anti-static places of human electrostatic discharge equipment, through the safe discharge of human electrostatic charge, to avoid static accumulation caused by fire, explosion or human electric shock accidents. Its core principle is to prolong the electrostatic discharge time, reduce the instantaneous discharge energy, and ensure the operation safety.

II. Core technology and materials

1. Electrostatic sub-conductor touch ball: explosion-proof sub-conductor or composite conductive fiber material, surface resistance value control in the range of 1 10 ~1 10, avoid the risk of direct discharge of conductors, while preventing the accumulation of insulator charges.
2. Resistance network design: built-in multi-stage resistance network (total resistance 1M), the static charge of the human body will be slowly conducted to the ground, the residual voltage after discharge is 100V, ensuring that the energy is lower than the oil vapor * small ignition energy threshold (0.2mJ).
3. Intelligent monitoring and alarm: integrated high-sensitivity sensor, real-time detection of static voltage status. When the static voltage exceeds the safety threshold (such as 150V), the audible and visual alarm (90dB) is triggered, prompting the operator to use it in a standardized manner.

III. Functional characteristics

1. Safety protection:
   • Intrinsic safety design, in line with GB3836.1-2010 explosion-proof standards, explosion-proof grade up to ExiaIICT4 Gb or ExibIICT6, suitable for Zone 1 and Zone 2 hazardous areas.
   • Grounding resistance detection function (55 or 60) ensures reliable connection between equipment and earth and improves discharge efficiency.
2. Intelligent interaction:
   • Voice + light sensing double reminder: automatic broadcast within 3 meters sensing range, please eliminate static electricity, blue indicator light is clearly visible during night operation.
   • LCD real-time monitoring: display human voltage value (0- 30kV range), ambient temperature and grounding status.
3. Durability and adaptability:

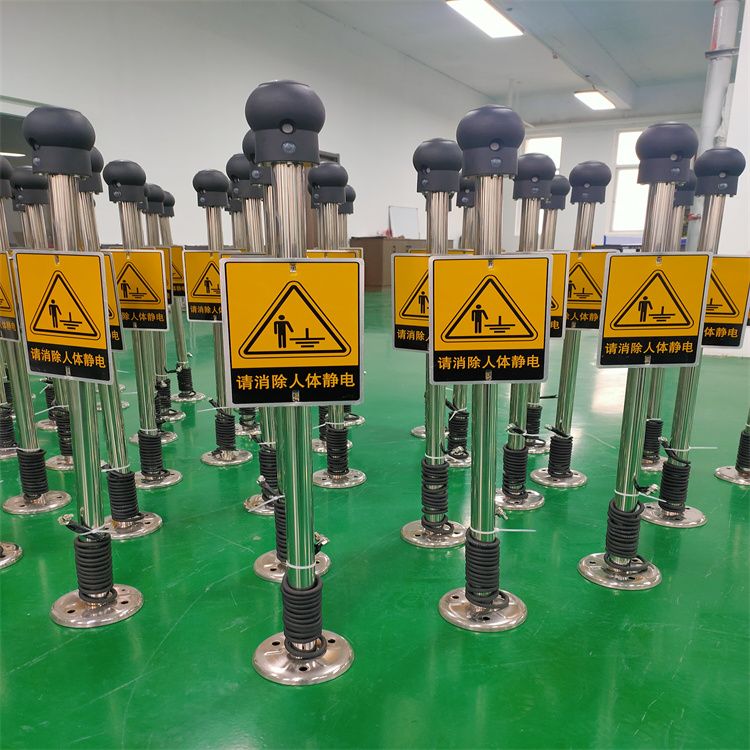

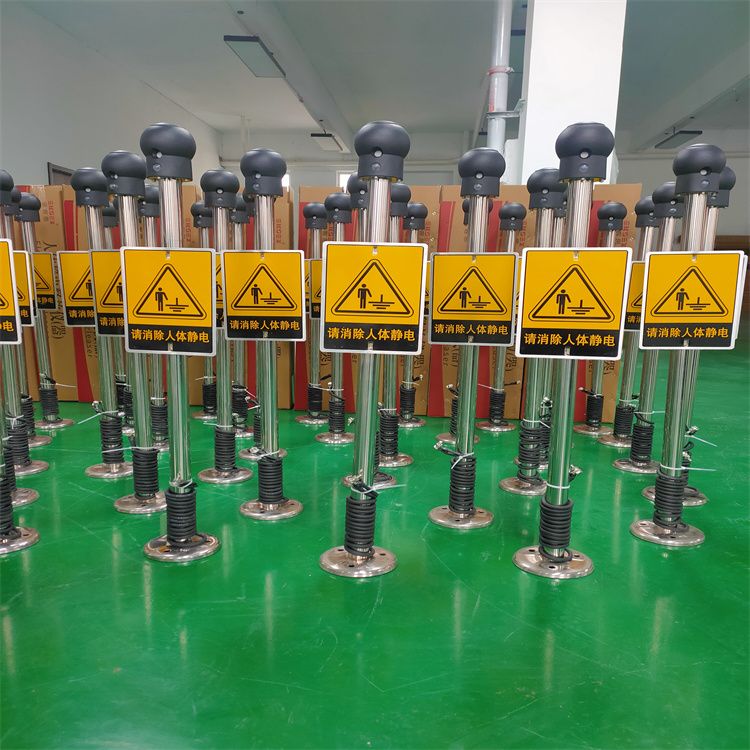

   • The pole material is mostly 304 stainless steel, corrosion resistance, high temperature resistance (-40℃~70℃, some models up to-50℃~100℃), adapt to harsh industrial environment.
   • The whole epoxy resin casting seal, corrosion resistance, waterproof, moisture-proof, protection level up to IP65.
4. Easy installation and maintenance:
   • It supports upright and wall-mounted installation methods, and is suitable for oil depot entrance, gas station unloading area, chemical plant operation platform and other scenarios.
   • Built-in high-performance lithium battery power supply, free of frequent battery replacement, annual maintenance cost reduced by more than 60%.

IV. Application scenarios

1. Petrochemical industry: storage tank escalator entrances, pump room operation rooms, hazardous chemicals loading and unloading areas, etc., operators need to touch the equipment for 10-15 seconds to eliminate the static voltage generated by clothing friction.
2. Gas station and oil depot: used for unloading oil port or oil delivery system, some models support linkage control, and it is forbidden to work when static electricity is not released.
3. Gas and refueling station: beside self-service refueling machine and LNG refueling machine to prevent electrostatic ignition of combustible gas.
4. Electronic manufacturing and warehousing: clean workshop, precision instrument warehouse, protect sensitive components from electrostatic interference.

V. Compliance with standards

1. Explosion-proof safety: type test shall be conducted according to GB3836.1-2010 General Requirements for Equipment in Explosive Atmospheres and GB3836.4-2010 Intrinsic Safety Type i Protective Equipment.
2. Industry application: Meet the practical operation requirements of Q/SY1431 -2011 Safety Specification for Gas Station Operation that the static elimination time of human body before operation shall not be less than 3 seconds.
3. Performance verification: Through the national explosion-proof electrical product quality supervision and inspection center detection, discharge energy attenuation rate reached 98.7%.
